Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

Product Categories
QINGDAO C AND C INTERNATIONAL TRADE CO., LTD
Contact Now

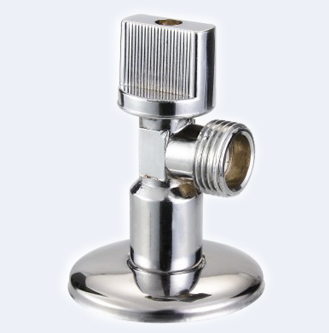

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

Brand Name : CNC Hardware

Model Number : ACV02005-08

Certification : CE, ACS, NSF

Place of Origin : China

MOQ : 500

Price : $0.90 - $1.60 / Pieces

Payment Terms : T/T, L/C

Supply Ability : 200000 Piece/Pieces per Month

Delivery Time : 26 days

Packaging Details : Carton

Material : C3771, C37700N, CW614N, CW617N, MS58

Handle : Forged Steel

Thread : BSP, BSPT, NPT, ANSI BI 20.1

Size : 1/2*1/2&1/2*3/4&1/2*3/8

Working Pressure : 1.6MPa (PN16) (300psi)

Working Temperature : -20°C≤t≤100°C

Contact Now

Zinc Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

Working Medium: Water, Non-corrosive Liquid, Non-Corrosive Air
Sealing: EPDM, PTFE or
Parallel Pipe Thread: ISO228, BSP, NPT, etc
Material: Brass
Working Pressure: 1.6MPa (PN16) (300psi)
Surface: Polished & Chrome Plated

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

  1. Cap nut
  2. Rubber o ring
  3. Mesh Stainless steel
  4. Handle
  5. Stem
  6. Screw
  7. Seal ring
  8. Body
  9. Ball set
  10. Ball
  11. Press nut

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

ACV02005

  • Material: Solid brass body forged
  • Fix ball type spindle
  • Knob: Zinc Alloy or ABS, CP.
  • Threads comply to ANSI/ASME B1.20.1
  • Pressure: >10bar
  • Size : 3/8",1/2,10C are available

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

ACV02006

  • Material: Solid brass body forged
  • Fix ball type spindle
  • Knob: Zinc Alloy or ABS, CP.
  • Threads comply to ANSI/ASME B1.20.1
  • Pressure: >10bar
  • Size : 3/8",1/2,10C are available

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

ACV02007

  • Material: Solid brass body forged
  • Fix stop type spindle
  • Knob: Zinc Alloy or ABS, CP.
  • Threads comply to ANSI/ASME B1.20.1
  • Pressure: >10bar
  • Size : 3/8",1/2,10C are available

Zinc Brass Angle Valve 90 Degree Brass Body ISO228 BSP NPT Thread

ACV02008

  • Material: Solid brass body forged
  • Fix stop type spindle
  • Knob: Zinc Alloy or ABS, CP.
  • Threads comply to ANSI/ASME B1.20.1
  • Pressure: >10bar
  • Size: 3/8",1/2,10C are available
